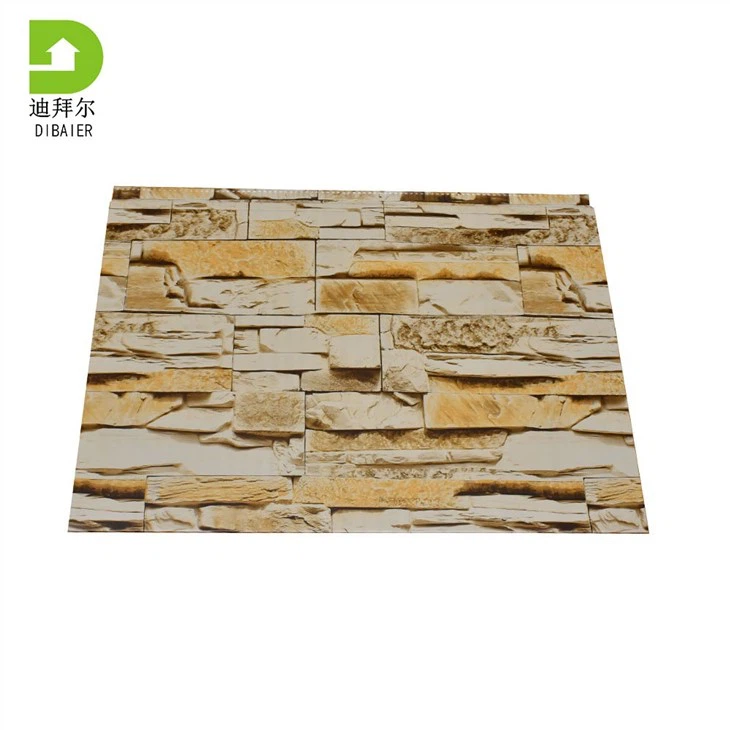

Polyurethane Faux Stone Wall Panel

Excellent advantages of polyurethane faux stone wall panel



1. Good sound insulation and noise prevention performance
In the middle is polyurethane foam insulation, sound insulation, and heat insulation layer, and its interior is an independent closed air bubble structure, which can play a good sound insulation effect, that is, the noisy noise outside is constant, and the interior is still as quiet as a forest.
2. Water resistance and moisture resistance
The outer layer is made of aluminum-zinc plate, and the joints of the plates are connected by gusset plates, without any gaps. The inner layer is protected by polyurethane foam, so it has low water absorption and excellent moisture-proof and impervious properties.
3. Durable, high-quality and environmentally friendly performance
It will not decompose and mildew, and will not produce harmful substances. It can reduce the pollution to the living environment of people. The waste solid waste can be recycled and reused. It is a high-quality, high-performance environmental protection product. It has a long service life and various designs and colors.





The characteristics of polyurethane faux stone wall panel are more powerful

1. Insulation performance: due to the relationship between fillers, the cold resistance and heat resistance of metal carved panels can stand the test. The houses built by metal carved panels are cost-effective and save a lot of manpower, material and financial resources. It is already convenient for many of us to start from public toilets.
2. Easy to install: Metal carved panels are wall panels. Regardless of the climate in the north and south, it is easy to install. It is not subject to geographical restrictions at all.
It can be installed anywhere.
3. Waterproof and moisture-proof: Outdoor buildings are most afraid of the harsh environment, but metal carved panels are just waterproof and moisture-proof, which means that there is no need to worry about the cause of water seepage, and there is no need to over-protect it in rainy days.
4. Green and environmentally friendly: Nature itself is healthy. Under such circumstances, metal carved panels also need to be safe and harmless. With stable chemical structure and physical assistance, metal carved panels can be used in a healthy and safe manner, and can For multiple recycling, you only need to disassemble and take it to a new place to assemble and build.







Specification

Product name	polyurethane faux stone wall panel
Size	3800*380*16mm/20mm(Length can be customized,MOQ>100Sqm)
Surface Textures and Appearance	Coarse brick veins;Wide or narrow brick veins;Standard brick veins;Standard brick veins;Bark veins;Stone veins;Plain veins
Materials	Polyurethane
Thickness	0.23mm-0.5mm
Unit weight	3.5kg/m³
Waterproof rate	415%
Wind resistance	8.0Kpa
Thermal conductivity	0.018W/m·k
Thermal Resistance	2.09㎡k/w
PU Density	40kg/m³
Compressive strength	52.7kpa
Characteristic	Good temp-keeping and heat insulation
Fine fireproof	Test by national quality inspection center for fireproof building material, all its index reach grade B1 According to your requirement(B1/B2)
Technical support	Incidental engineering drawings
Used	Application of light-weight activity rooms such as various activity rooms, temporary rooms, and simple rooms, and light-steel activity rooms;
Installation	Convenient and flexible without the large- size lifting devices so that the construction period is limited with the lower comprehensive costs
Application	Polyurethane /PU foam sandwich panel(exterior/interior wall panel) can be used on any structural buildings ,brick wall, Steel structure, CEM











Jinan Dibaier Environmental Protection Materials Co., Ltd. is a collection of polyurethane insulated wall panels.Polyurethane insulated wall panels is a new type of environmentally friendly building material that has been very popular in recent years. It has advantages in beautiful appearance, thermal insulation, waterproof and flame retardant, sound insulation and noise reduction, and green environmental protection. So, do you know where polyurethane insulated wall panels can be used?

Under normal circumstances, pu foam wall panel are not only suitable for the thermal insulation decoration of the exterior walls of newly-built brick-concrete structures, frame structures, steel structures, light-body buildings, etc., but also for the decoration and energy-saving renovation of existing buildings, as well as indoor and outdoor decoration. In other words, there are too many places where pu foam wall panel can be used.



Metal carved board is a new type of lightweight and energy-saving building material that is popular in the world. It has excellent decorative effect, high strength, green environmental protection, heat preservation, fire prevention and waterproof, acid and alkali resistance, especially for dry construction, easy installation, labor and time saving, can greatly shorten the construction period, and does not generate construction waste, the application advantages are special obvious.



The aluminum foil of the metal engraved board sometimes burns, how to solve it?



The bottom layer of the metal carved board adopts a protective layer of aluminum foil for heat insulation and moisture resistance. The polyurethane core layer is a flame retardant material with a fire rating of B1. Even if the aluminum foil burns, polyurethane will insulate it from burning.







The substrate of the  exterior wall panel is made of galvanized steel plate with a thickness of 0.30mm. The theoretical life of the galvanized steel plate is 50 years, and the recovery rate is 99.9%, which effectively realizes the reuse of energy.
2. The outer surface layer of the plywood can be pressed into various textures through special processing, with various realistic patterns and rich colors, which can meet different architectural styles. While beautifying the city, it also greatly improves the taste of the building and integrates nature into one body.
3. The metal carved panel installation system adopts the dry-hanging method and uses related special accessories. The construction process is simple and does not require cumbersome pretreatment of the outer surface of the building. Since it is not affected by the seasonal environment, the construction period is greatly shortened.



Installation steps of polyurethane faux stone wall panel

Polyurethane faux stone wall panel is a new type of thermal insulation composite material that has been popular in recent years. It has various patterns, has good decoration, and is convenient for construction and quick to install. However, many users have not mastered the correct installation method because of the first use, which leads to the installation effect not reaching expectations, and may also cause material waste and damage.
So what are the steps to install the metal carved panels?
The installation tools should be prepared before installation: electric drill, expansion screws, self-tapping screws and main materials.
1. First place the metal carving board on the wall, turn on the electric drill, and then use the electric drill to drill holes in the wall through the connection of the metal carving board.
2. Then install expansion screws at the punched holes, and fix them with self-tapping screws.
3. Finally, place another board on top of the fixed metal carved board, and snap the groove of the other board into the fixed board slot. Then repeat the above operation.
After the installation is completed, the exterior wall will be beautifully decorated, heat-insulated, fire-proof, moisture-proof and sound-proof.
The installation method of metal carved panels is simple and fast, and it is not restricted by seasonal climate and geographical environment, and can be installed and used throughout the year. The project cycle can be greatly shortened, and the construction cost is also saved, and it can bring better aesthetics.



Installation process

Certificates

Package and shipping

FAQ

1. What are the specifications and specific installation prices of polyurethane faux stone wall panel?
3800*381*16 standard stock specifications, the length of 3800mm can be ordered according to the needs of customers, and the specific price can be quoted in detail according to your design requirements and drawing requirements.

2. How to install polyurethane faux stone wall panel​​​​​​​?
Depending on the house, the installation method will also change. Two commonly used installation methods:
1) Install directly with plastic expansion bolts
2) Fix the keel first, and then install the metal carving board on the keel

3. What is the fire rating of polyurethane faux stone wall panel​​​​​​​? Have there been experiments to prove it?
Fire rating B1, passed the test of professional technical department and can provide test report

4. What are the specific construction methods for flat walls and concave-convex walls for the thermal insulation of polyurethane faux stone wall panel​​​​​​​? Will it be blown off by the wind?
According to the different properties of the wall surface, there are many kinds of construction techniques. The technical department provides professional construction plans for the specific construction methods. Will not be blown off by the wind.​​​​​​​

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish
